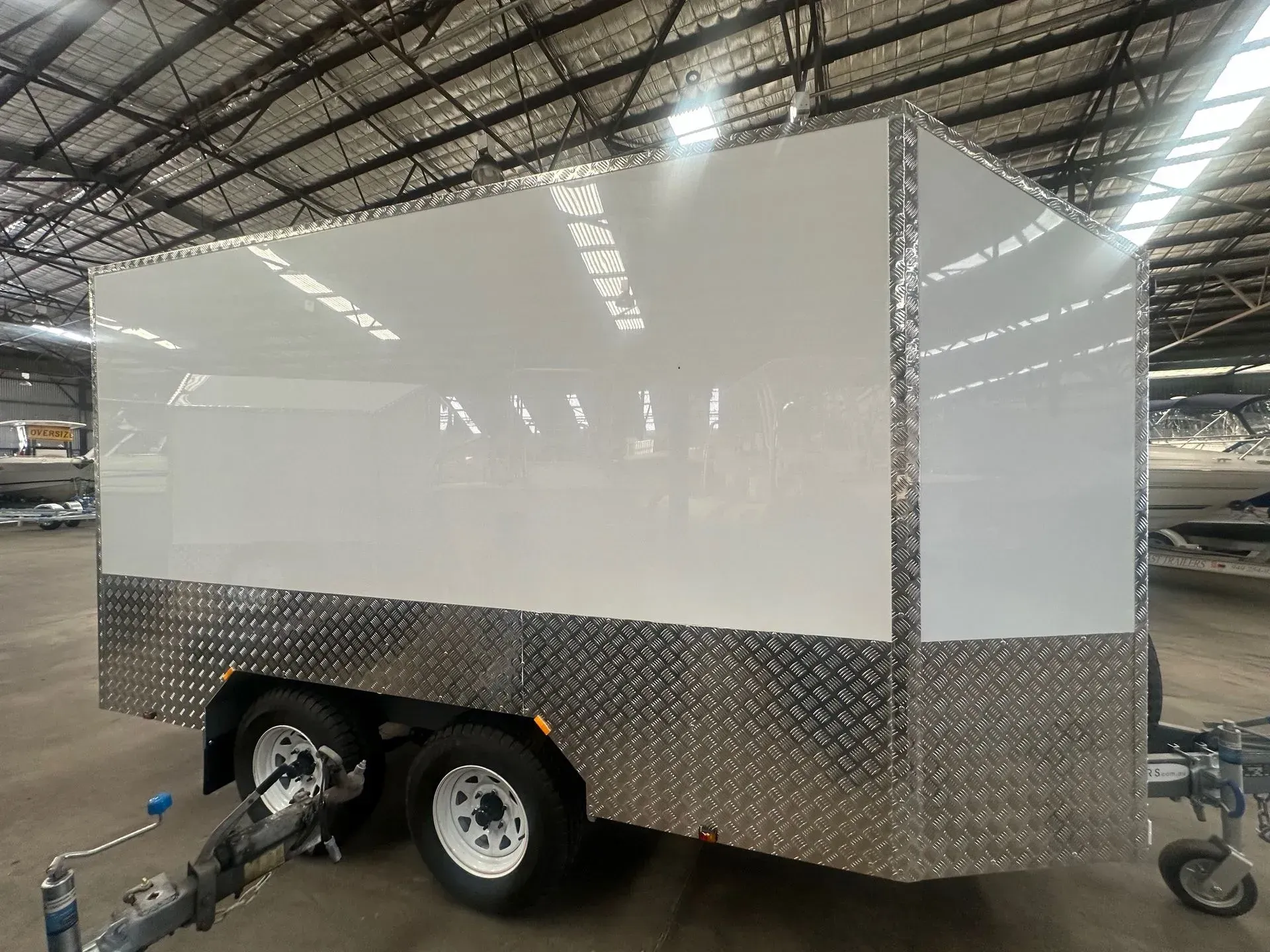

Mining Workshop Powered Trailer

• 3500 kg rated, tandem axle, enclosed trailer
• Electric drum brakes
• Total length: 5400 mm; total width: 2300 mm
• Main body: 3600 mm x 2300 mm x 2100 mm high
• Drawbar: 150 x 50 mm x 3 mm
• Chassis full RHS 50 x 50 x 2.5 mm

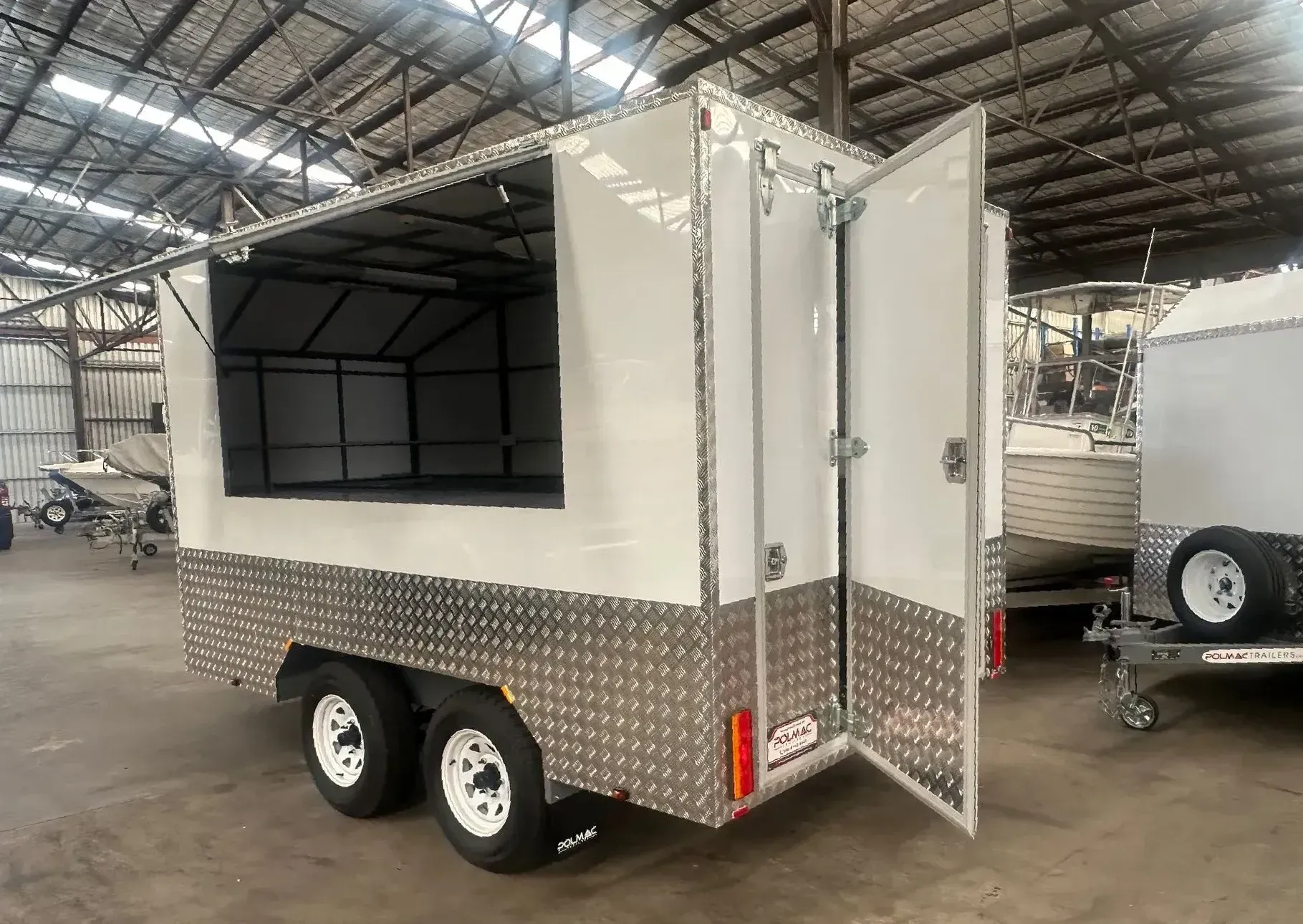

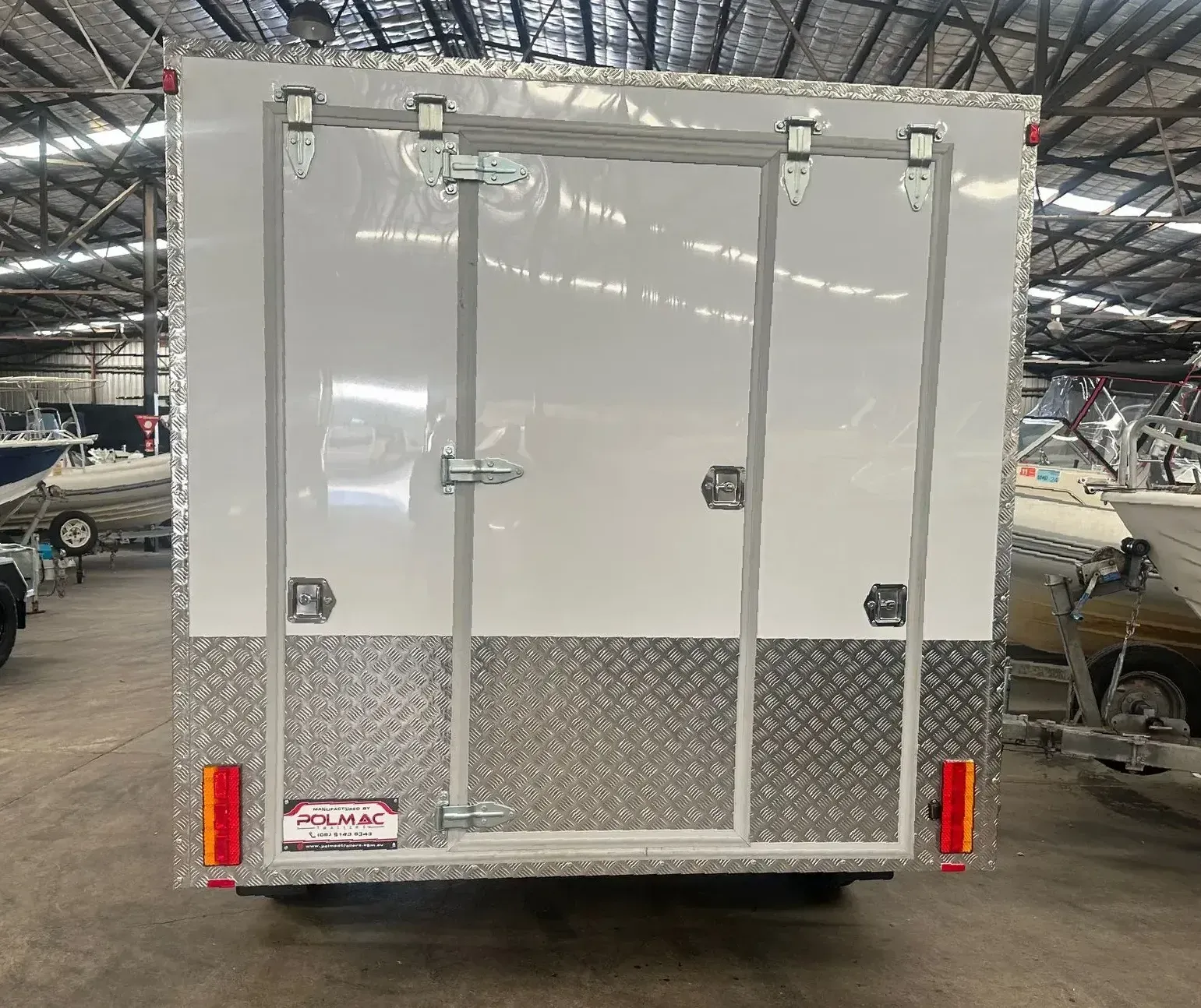

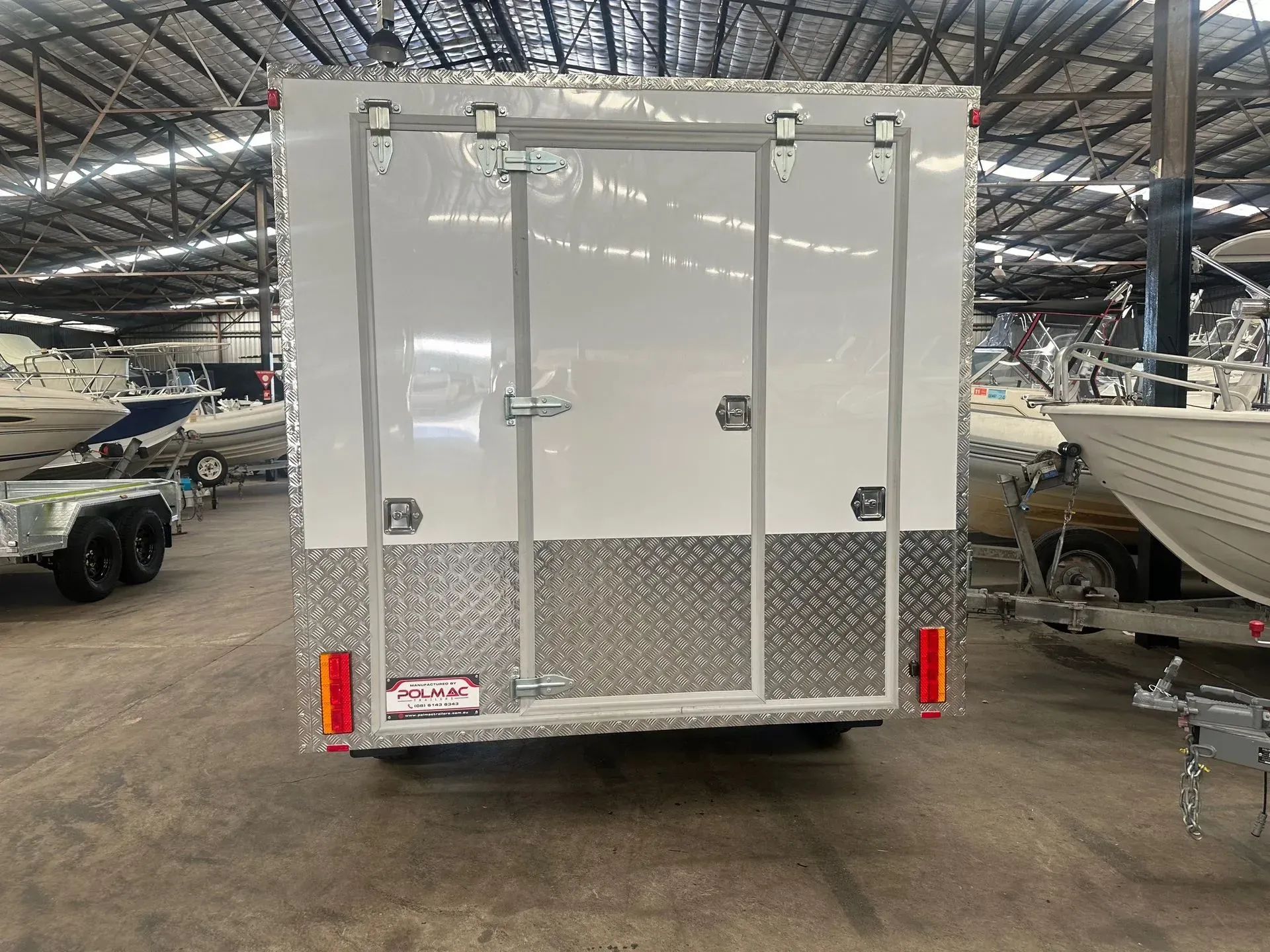

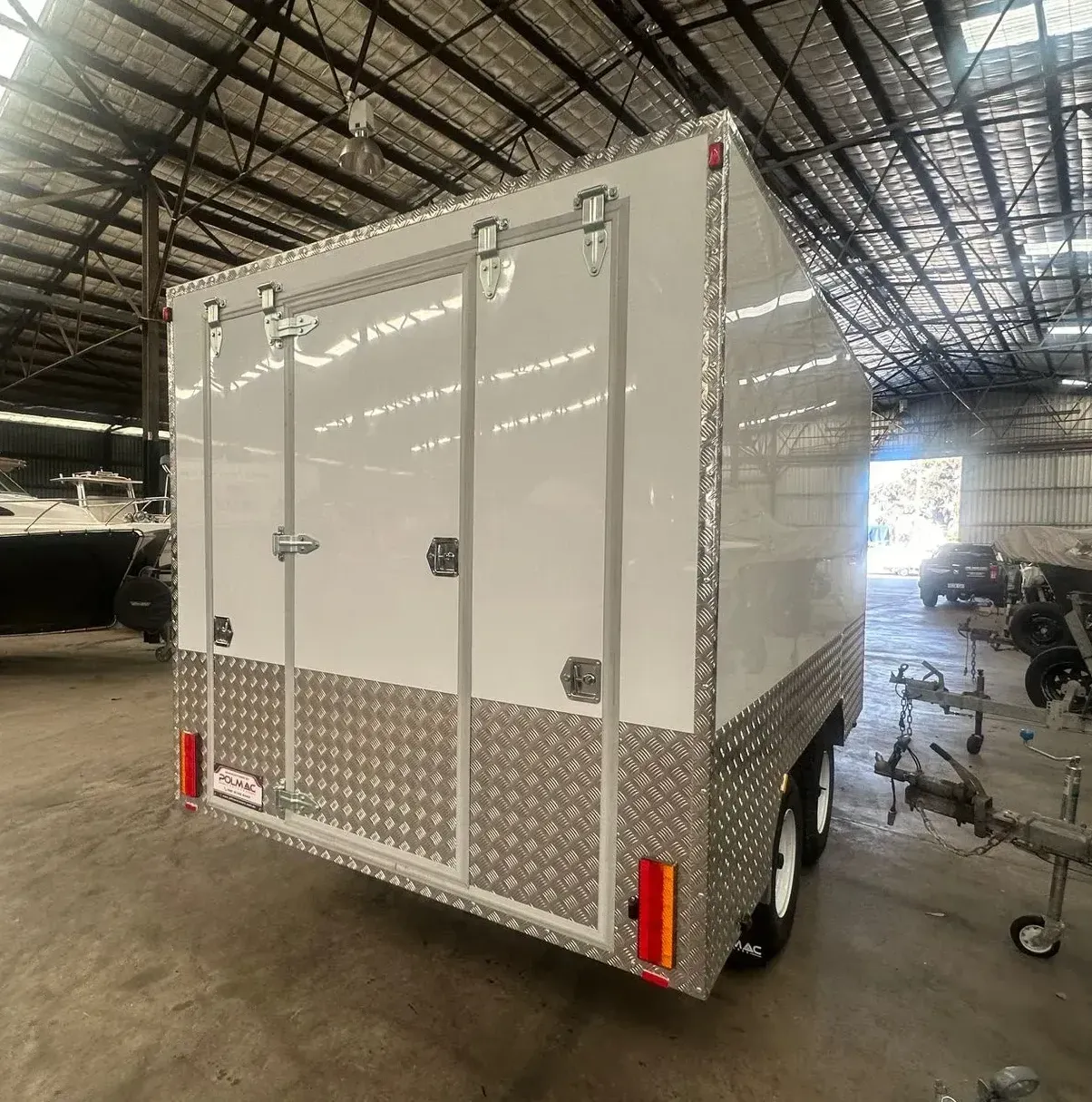

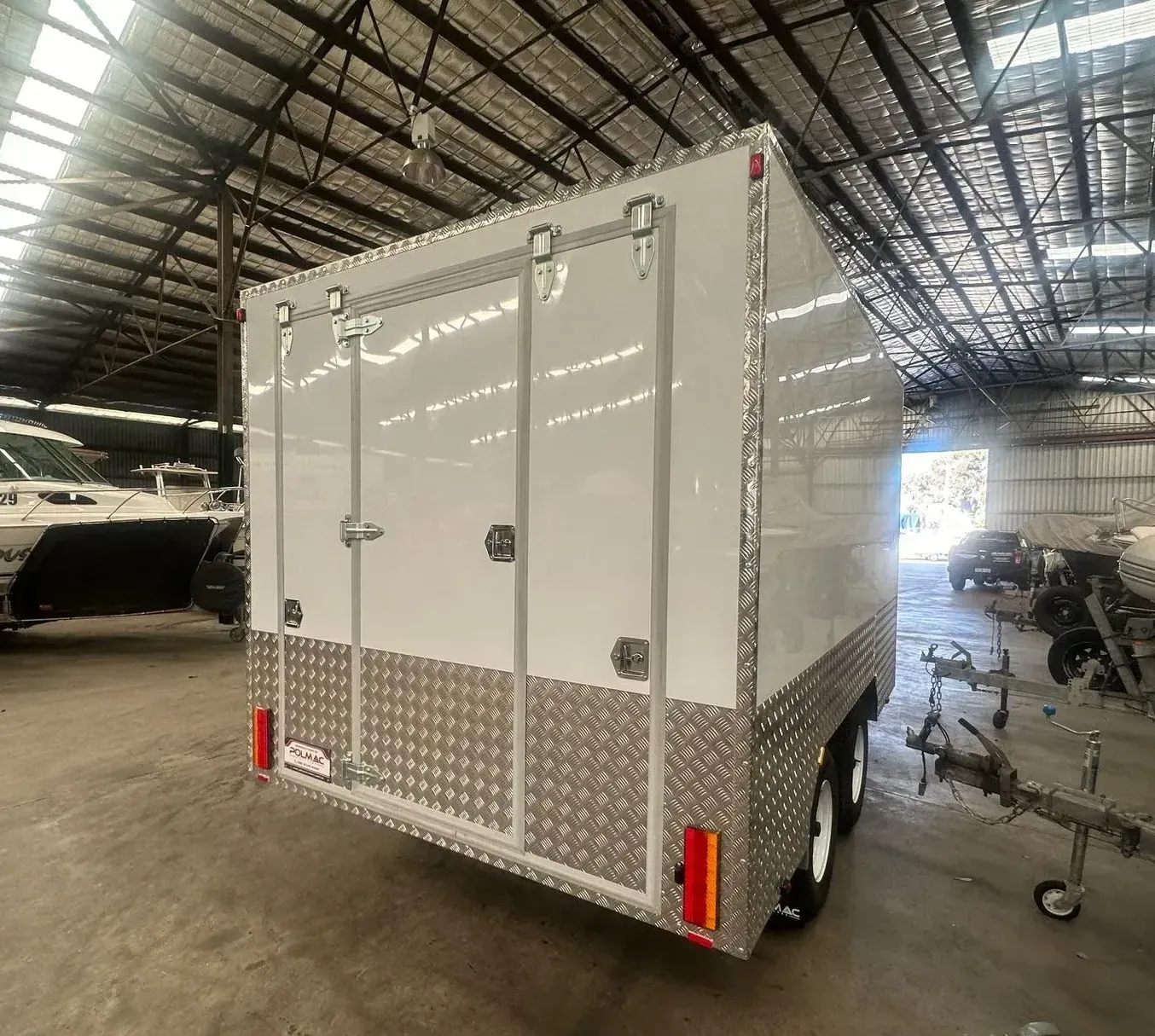

• PA door in rear,  lift up trailer door in middle 820 mm wide
• 700 mm tapper on front of trailer on drawbar

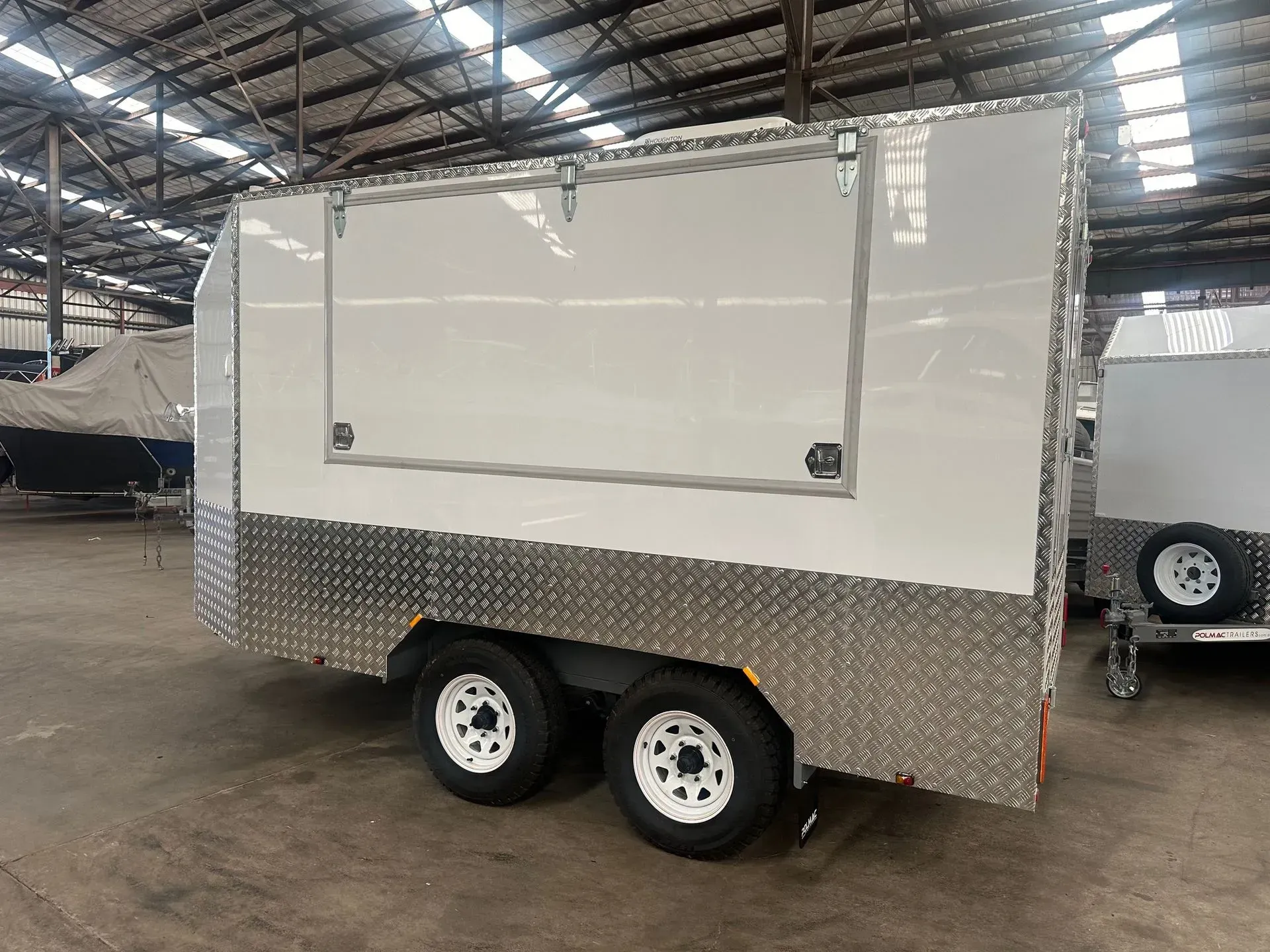

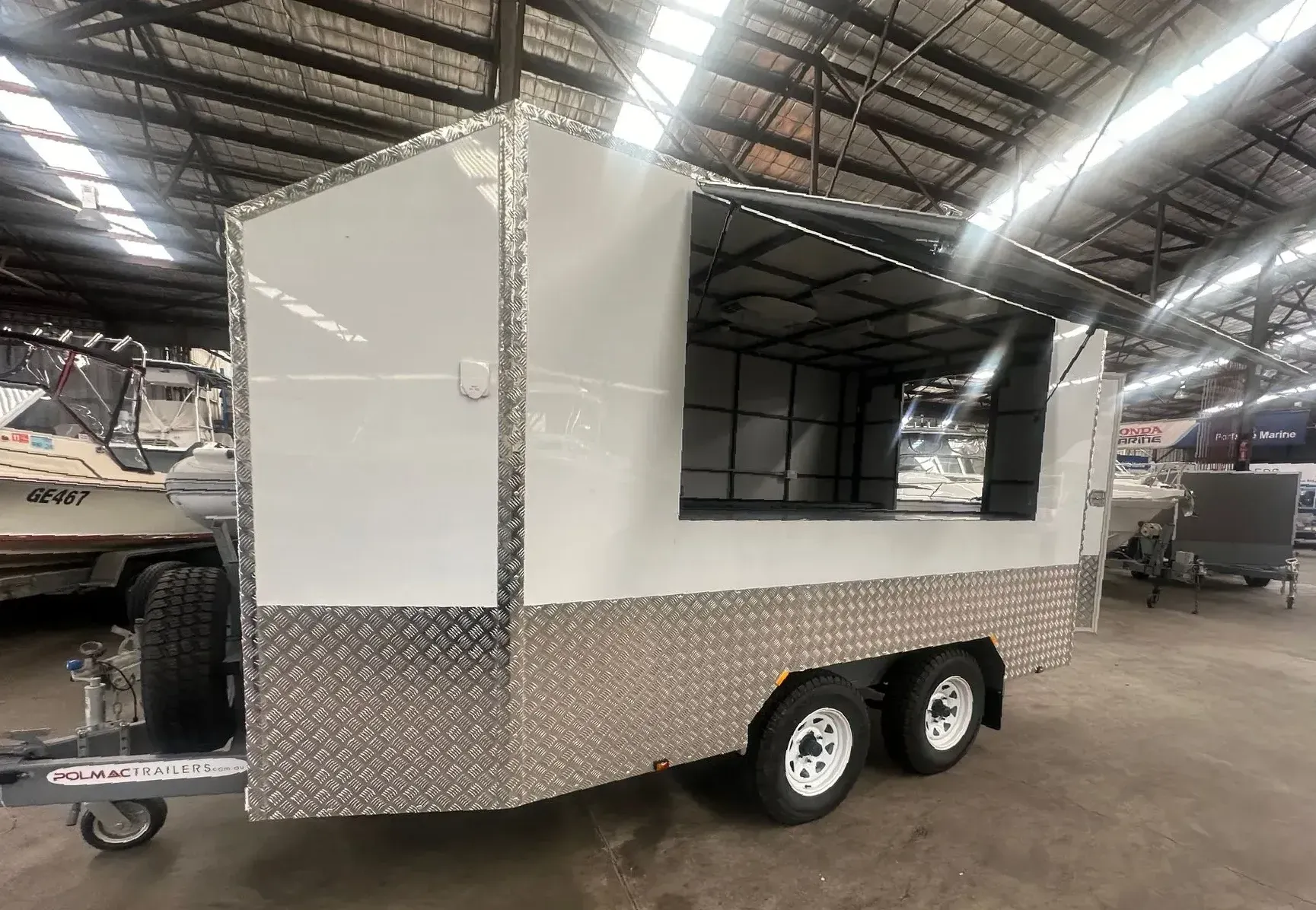

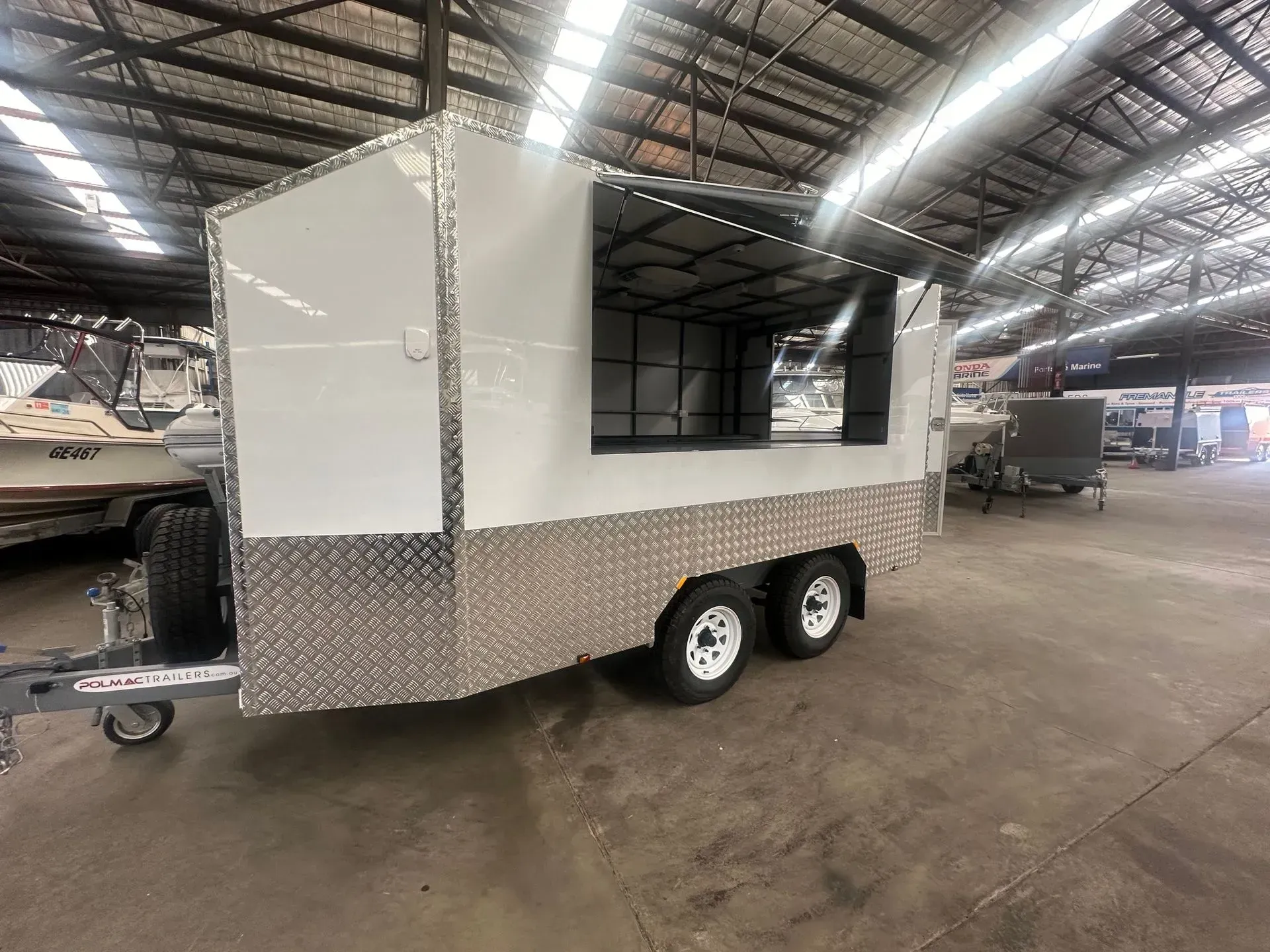

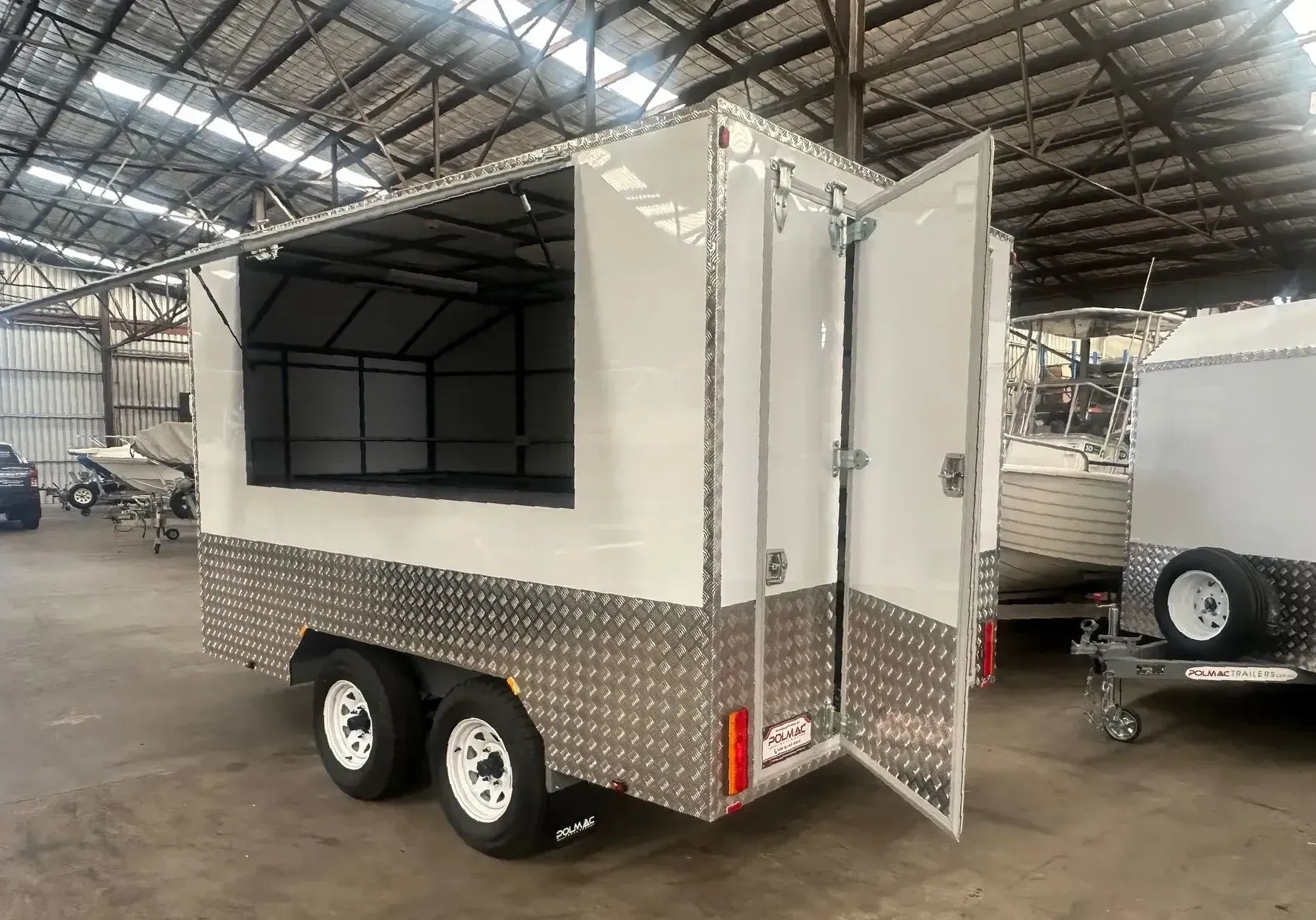

• Side lift up door: 2400 mm x 1200 mm

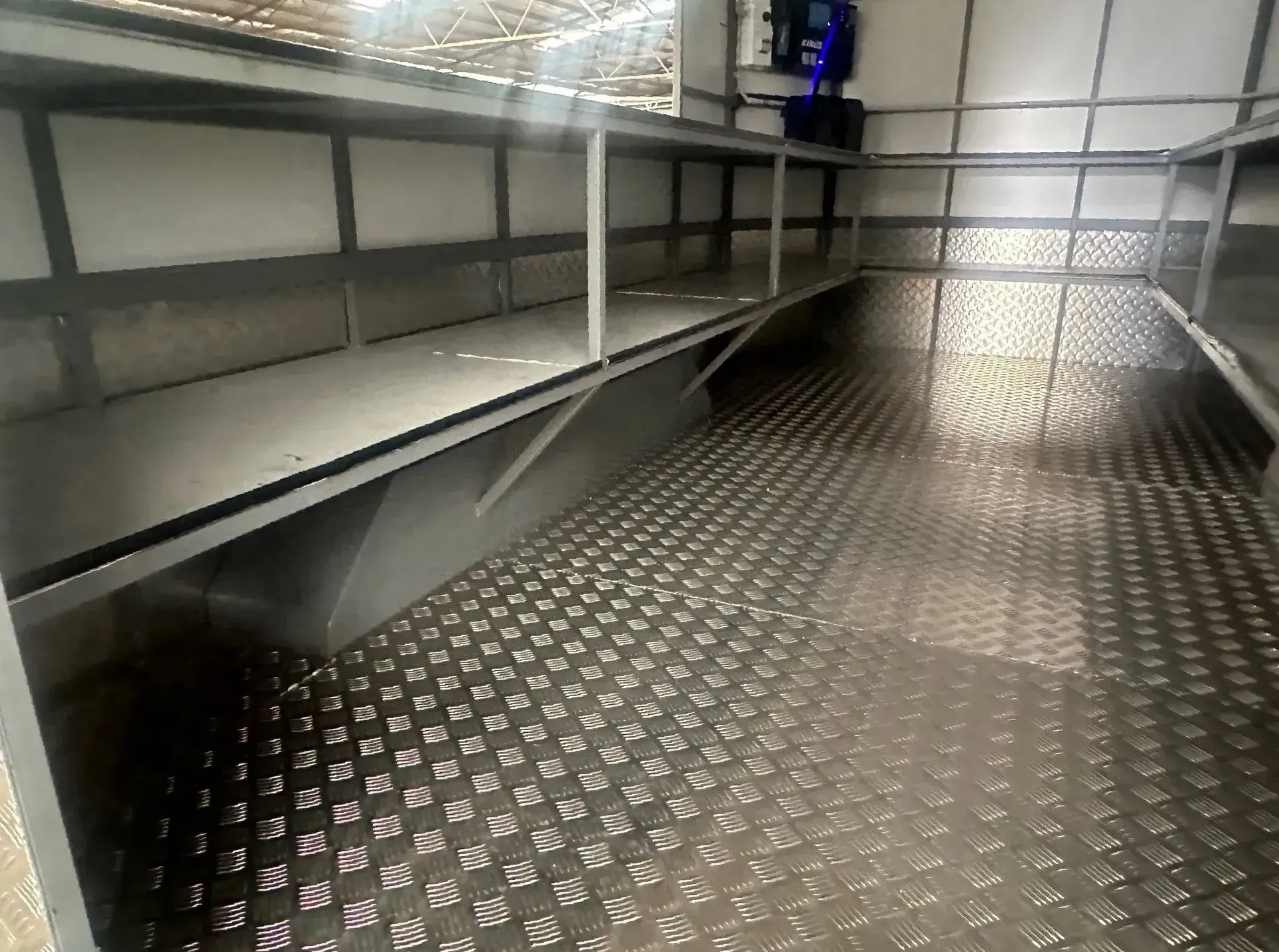

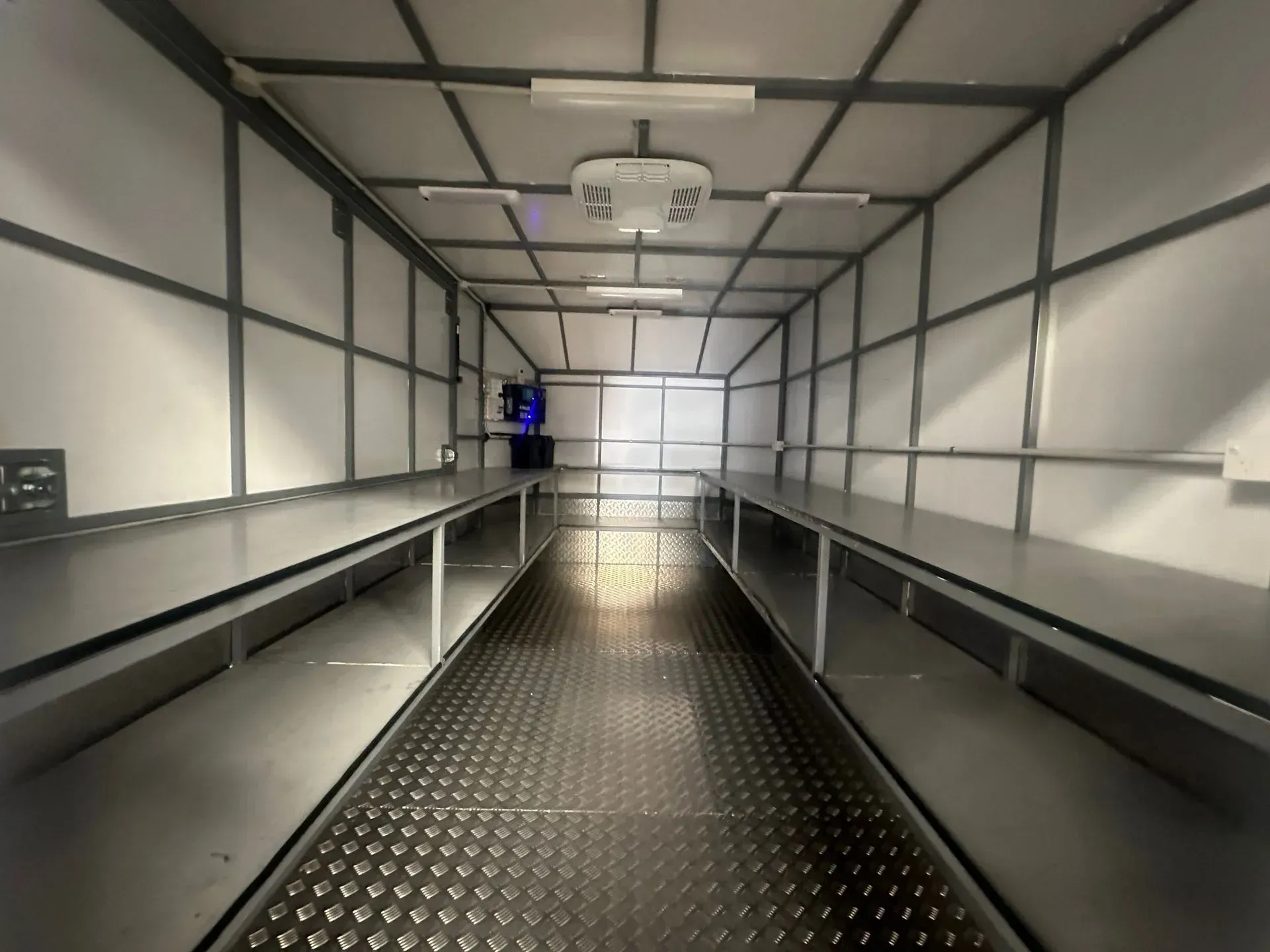

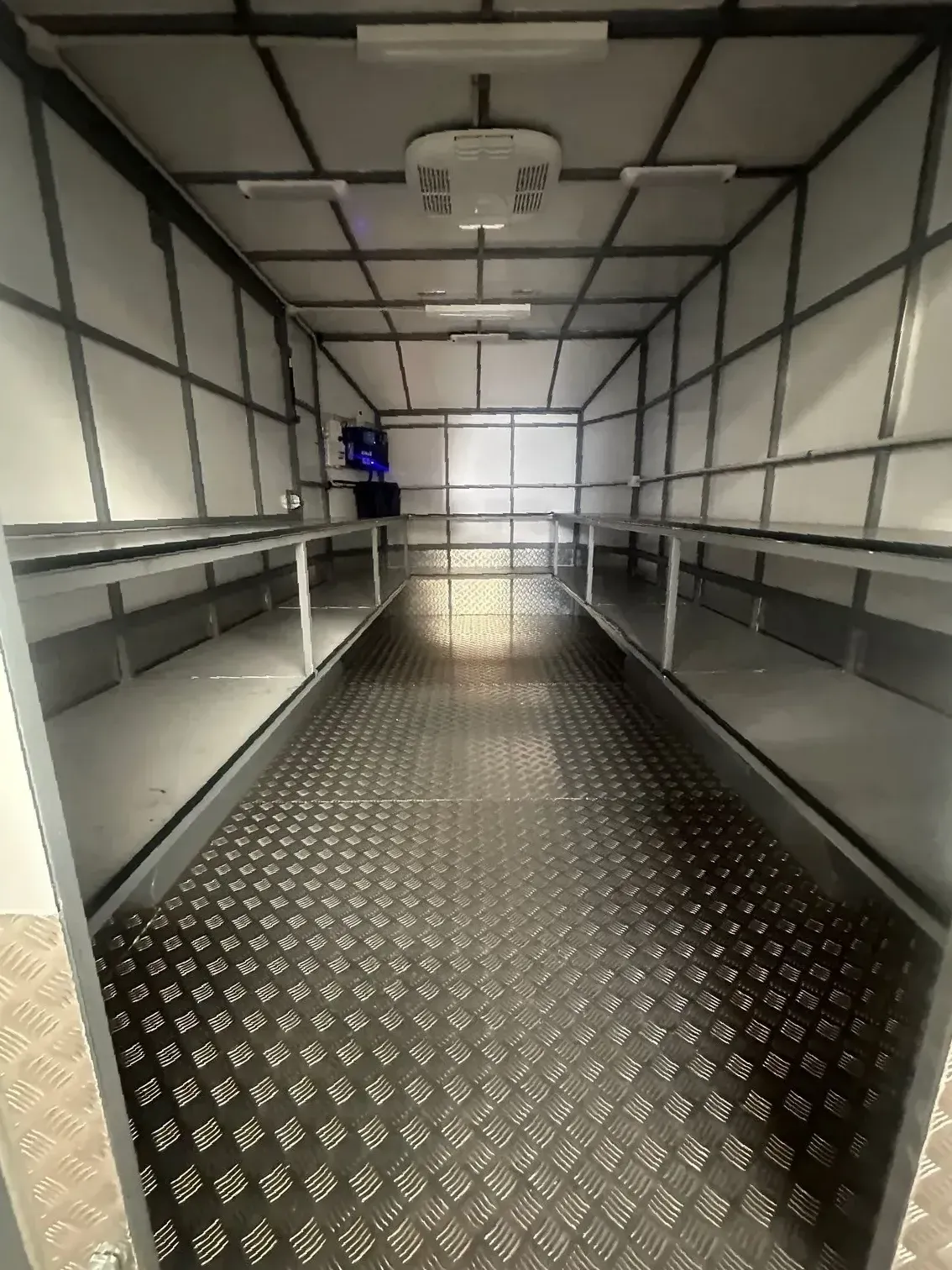

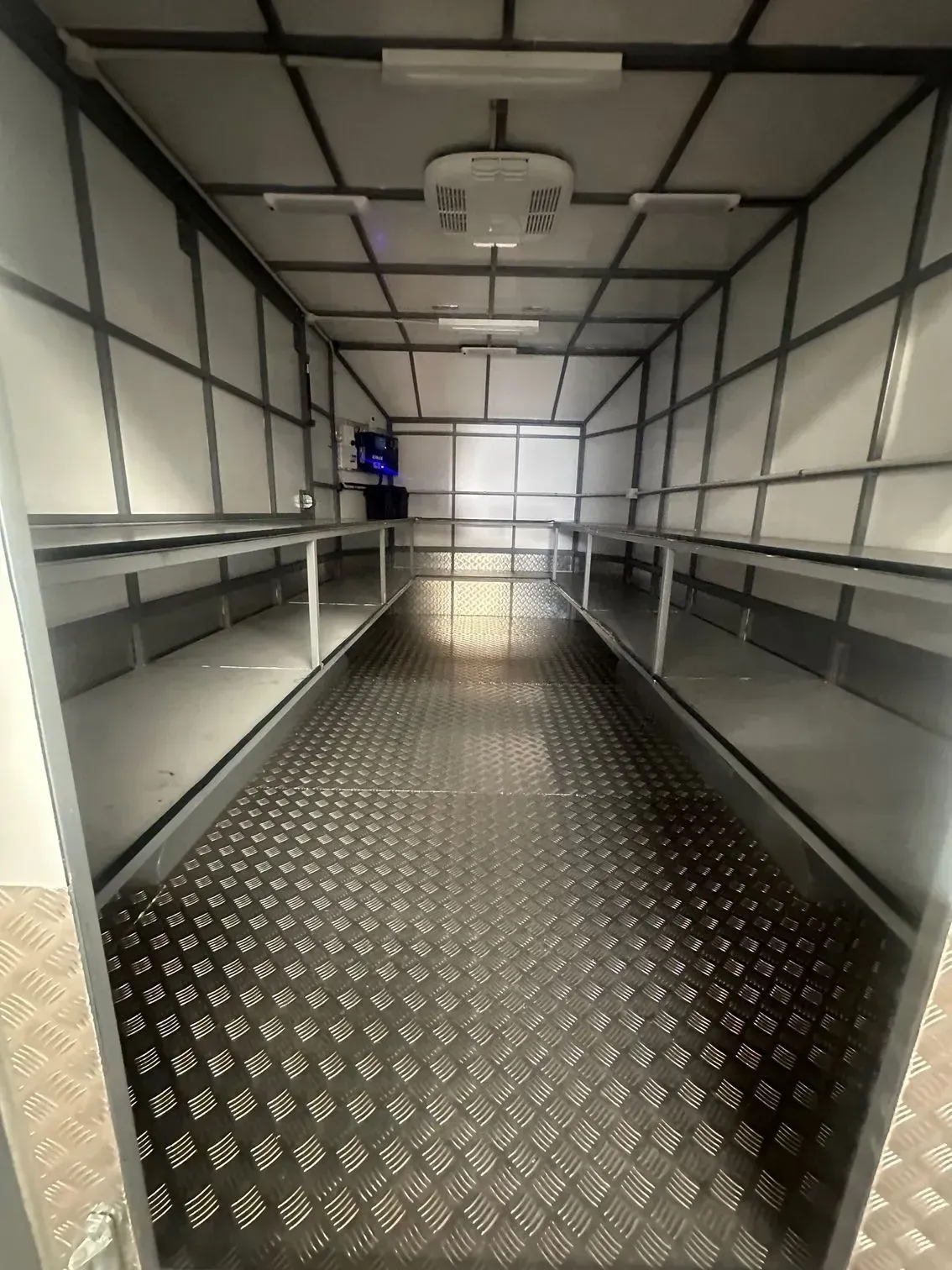

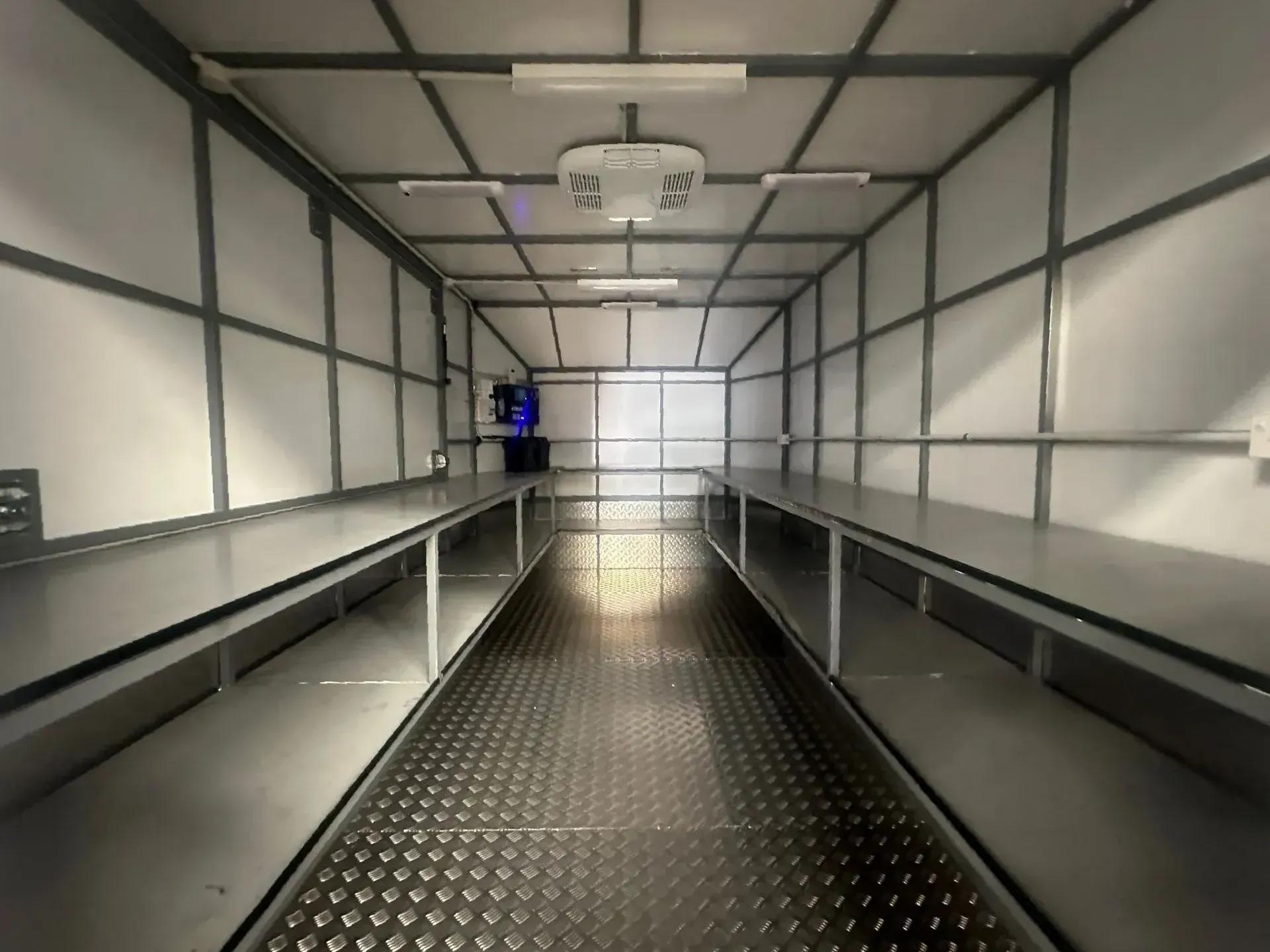

• Shelfs inside the trailer: 900 mm high all around the trailer, and 450 mm and 600 mm deep
• White Alcobond panels on trailer
• Aluminium checker plate on side: 600 mm from bottom

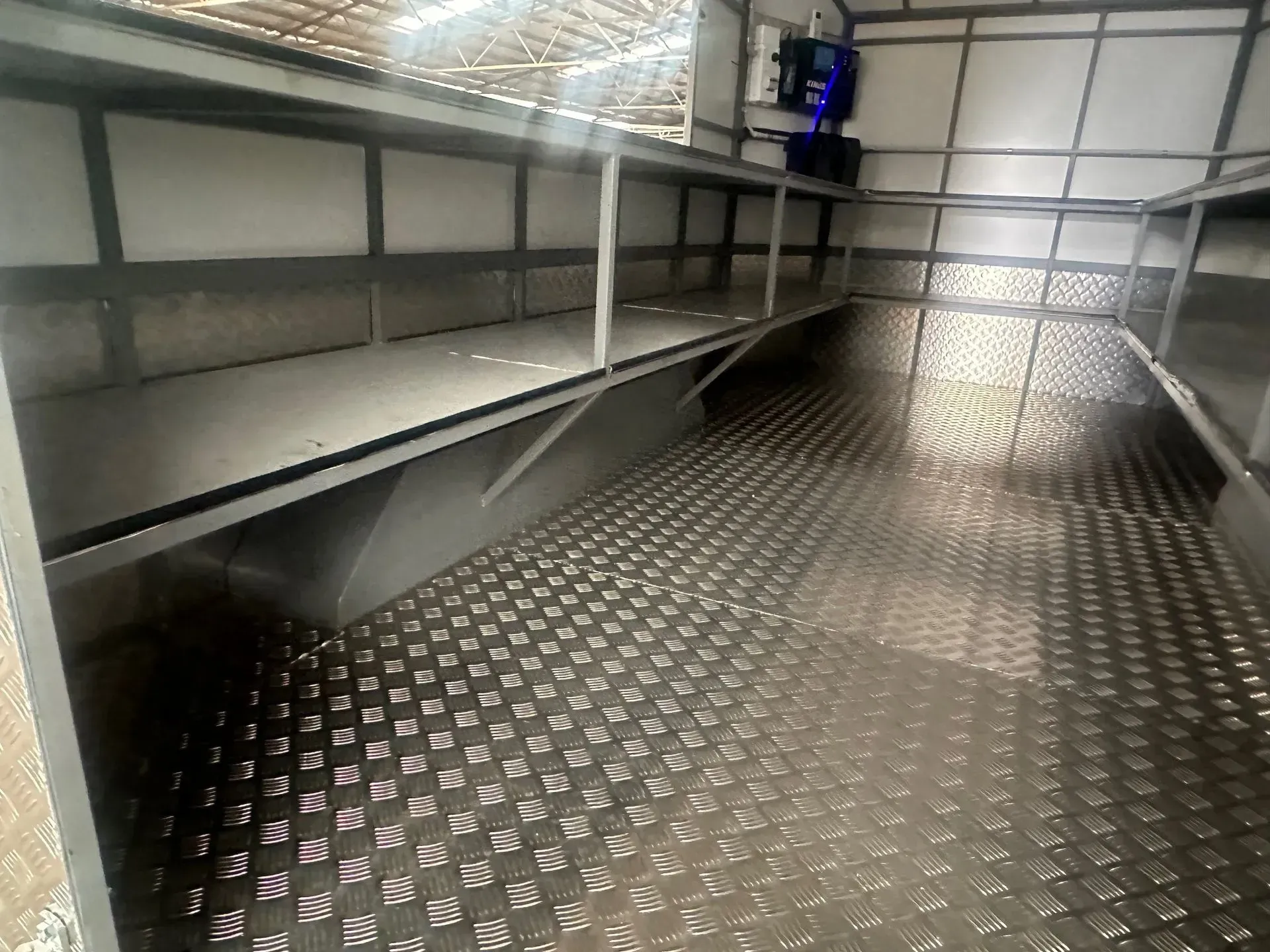

• Aluminium checker plate floor
• Swing up jockey wheel

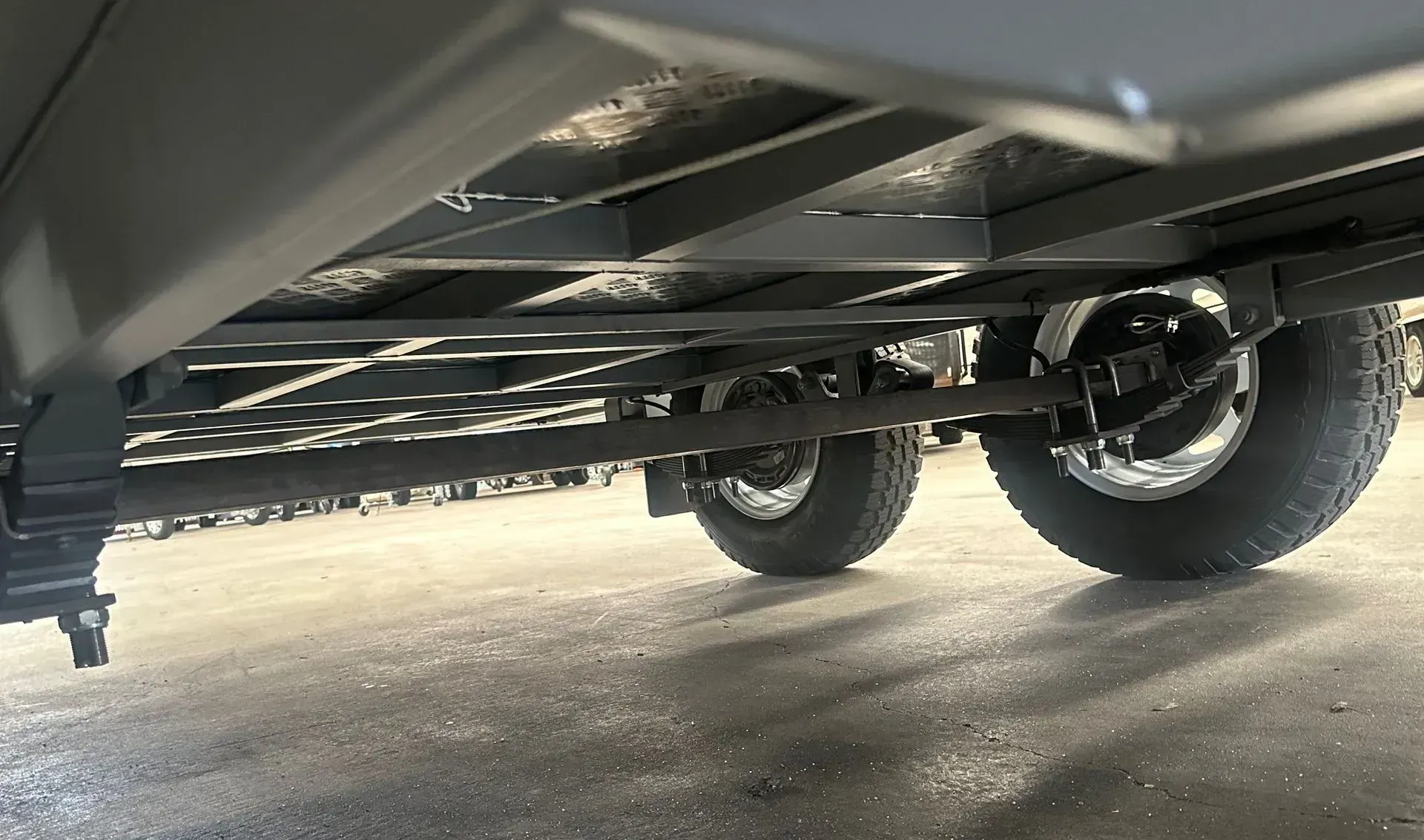

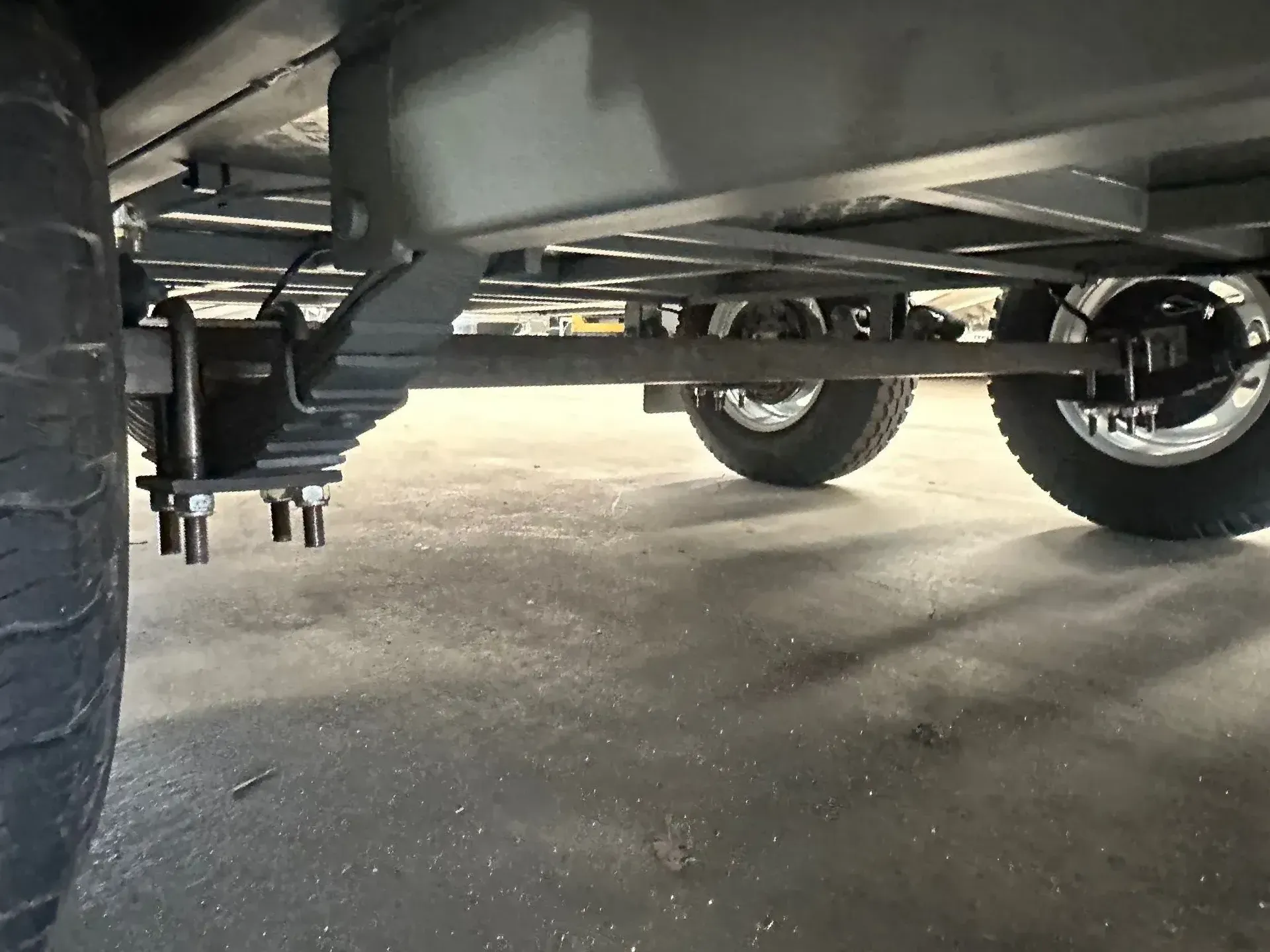

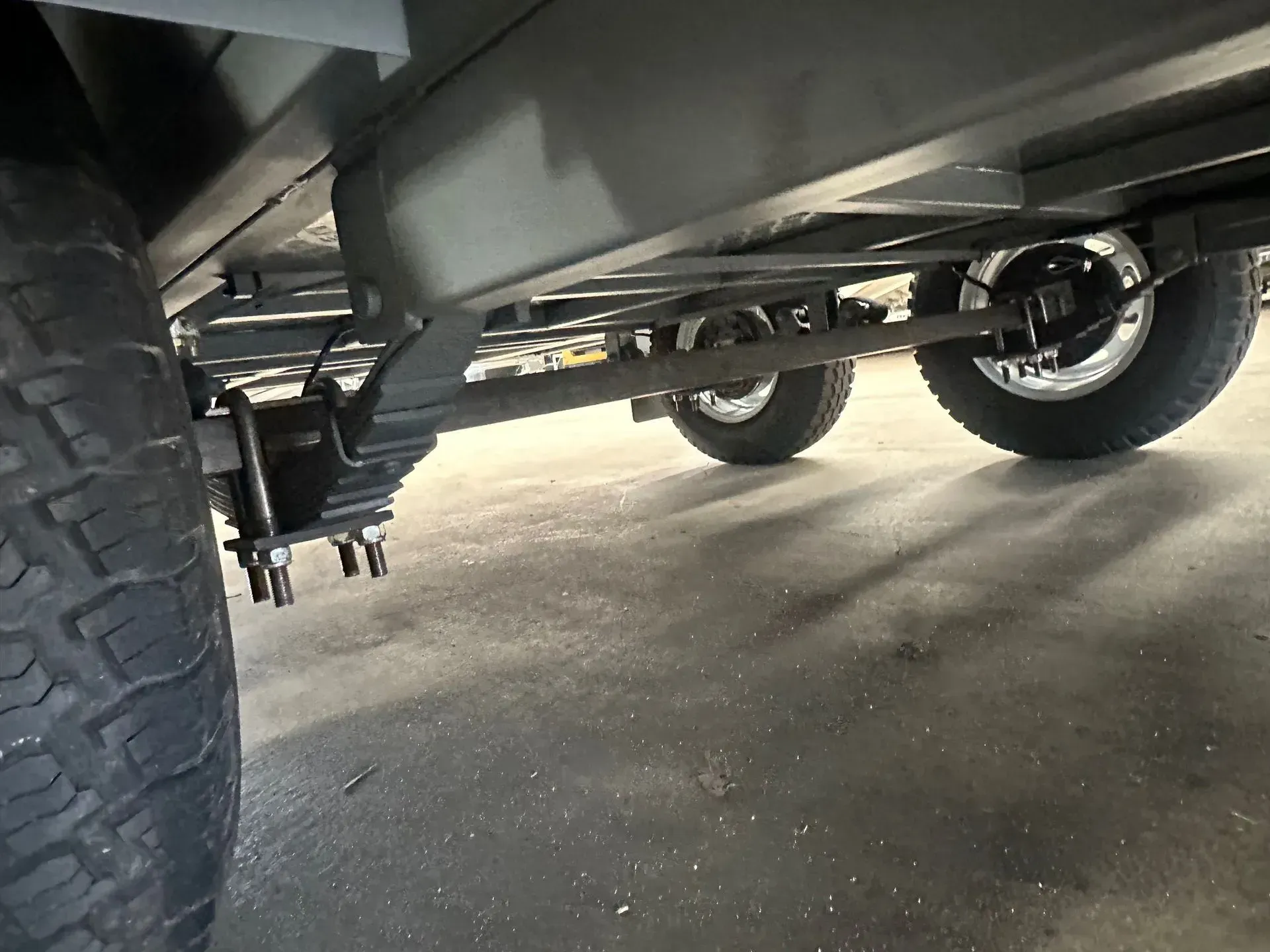

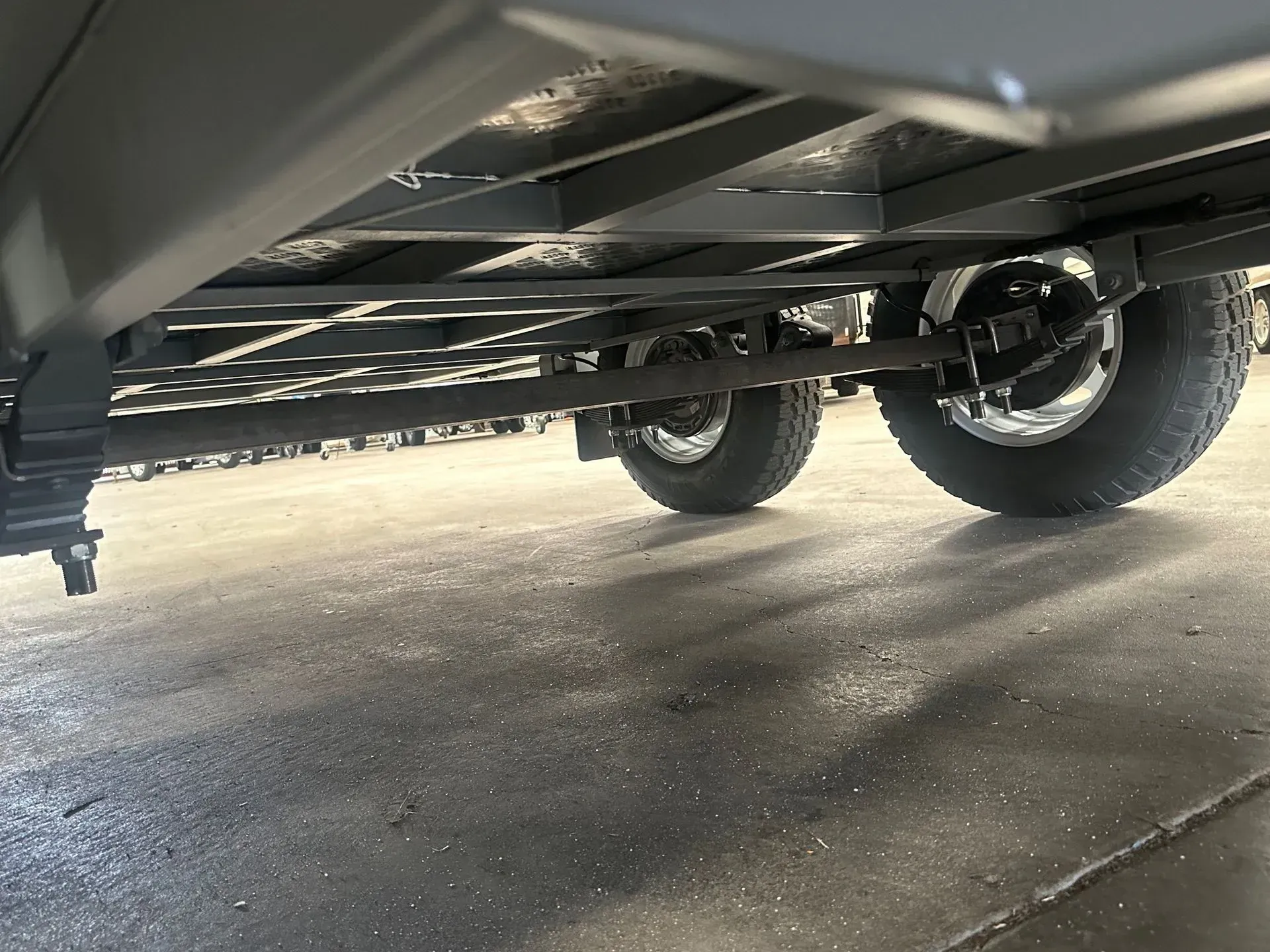

• 9 Leaf roller rocker suspension 60 mm wide
• 10 inch electric drum brakes on all wheels
• 45 mm Sq 1750 kg  Axles rated
• 2 x Safety Chains
• 7 Pin Round or Flat Plug

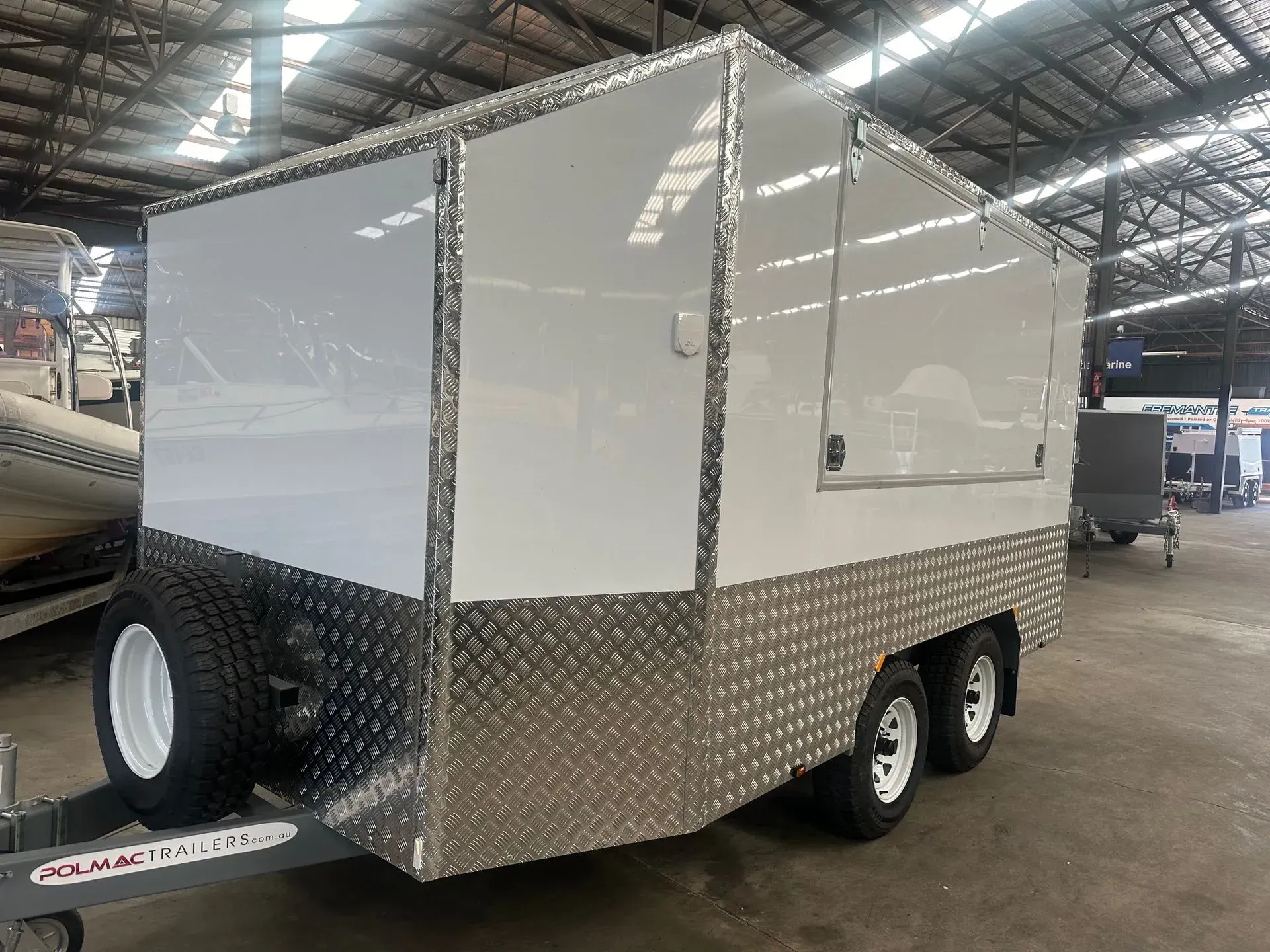

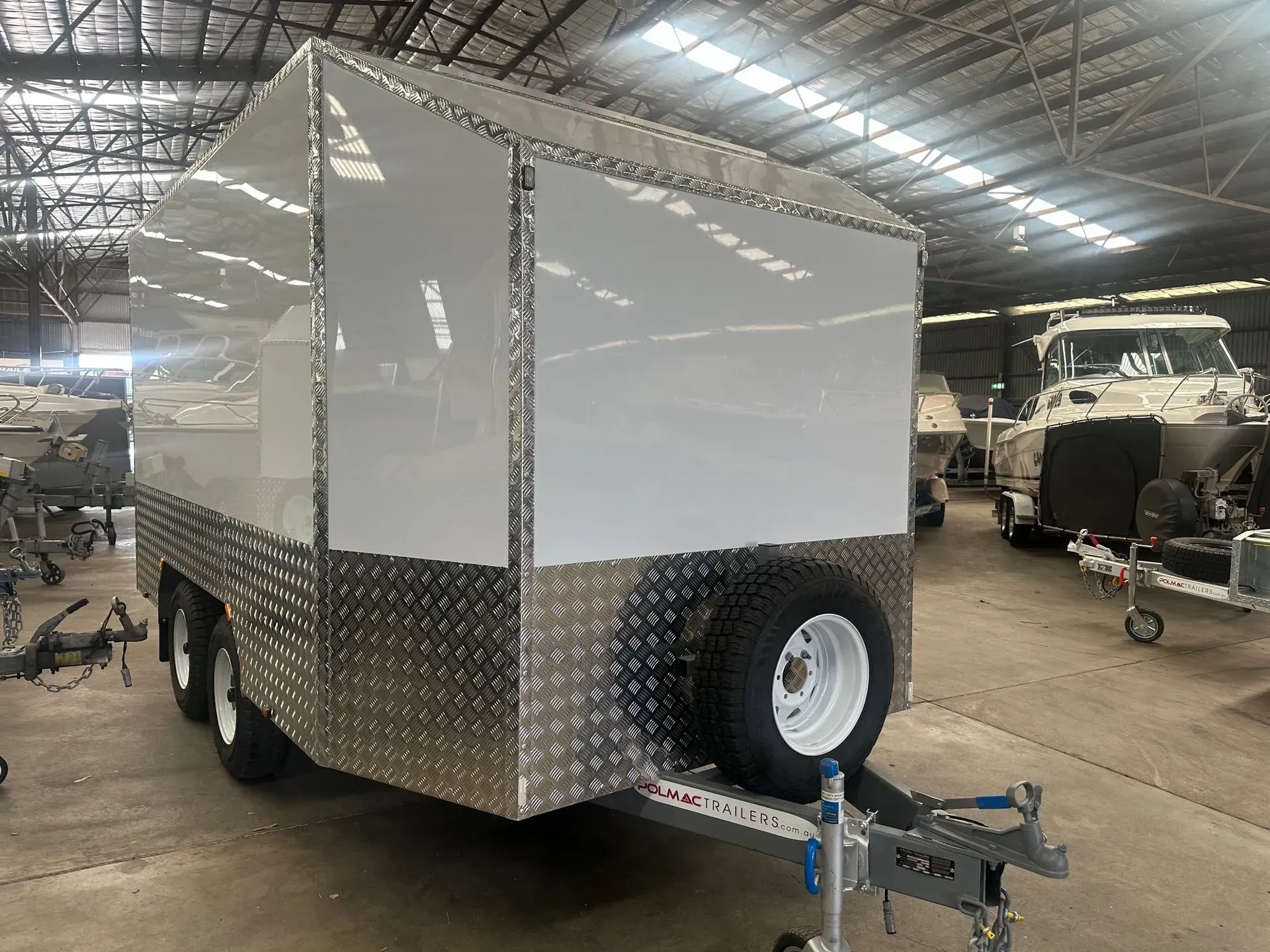

• Tyres 235/75R/15 on 6 stud white rims plus spare wheel x 1

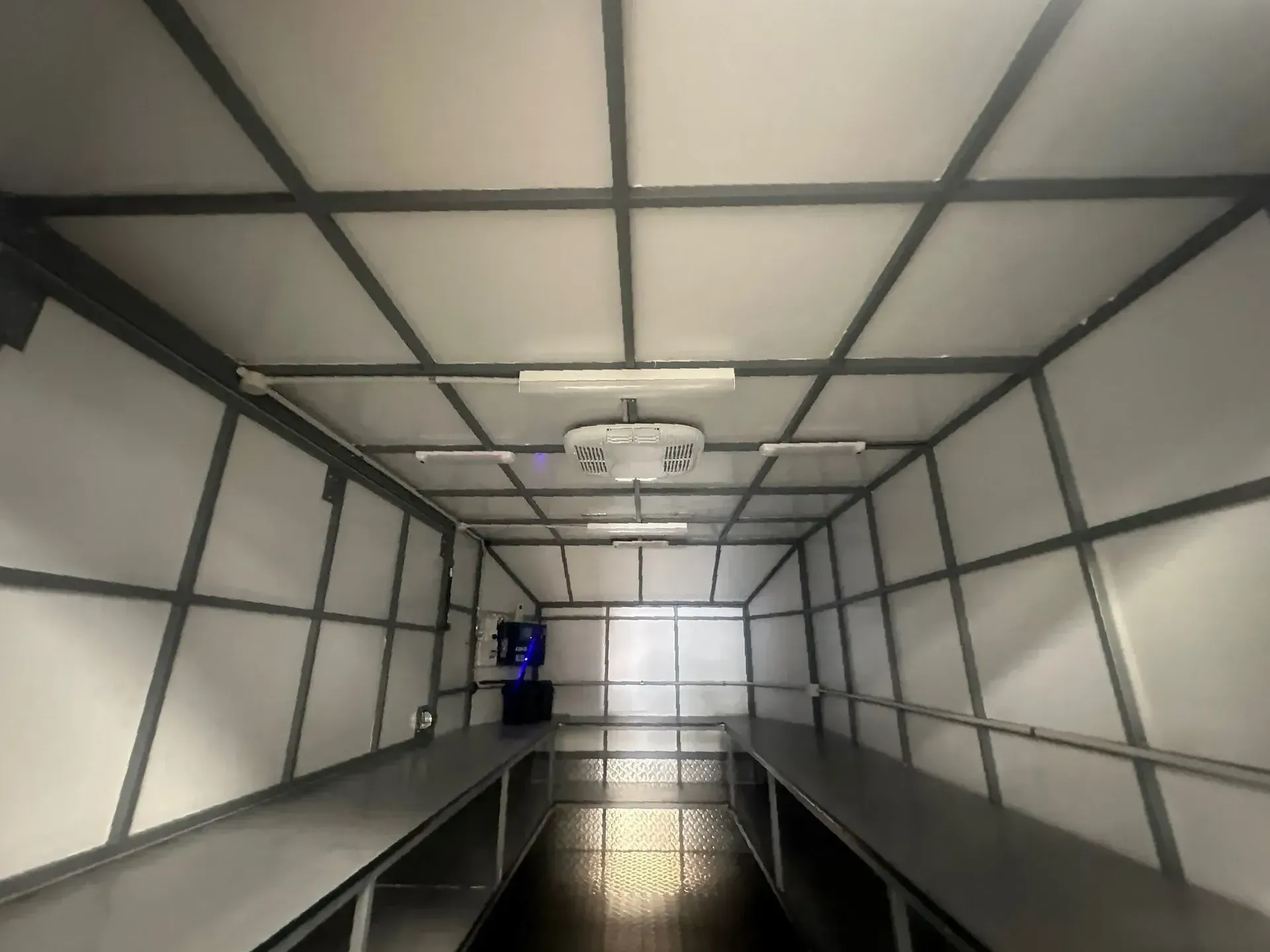

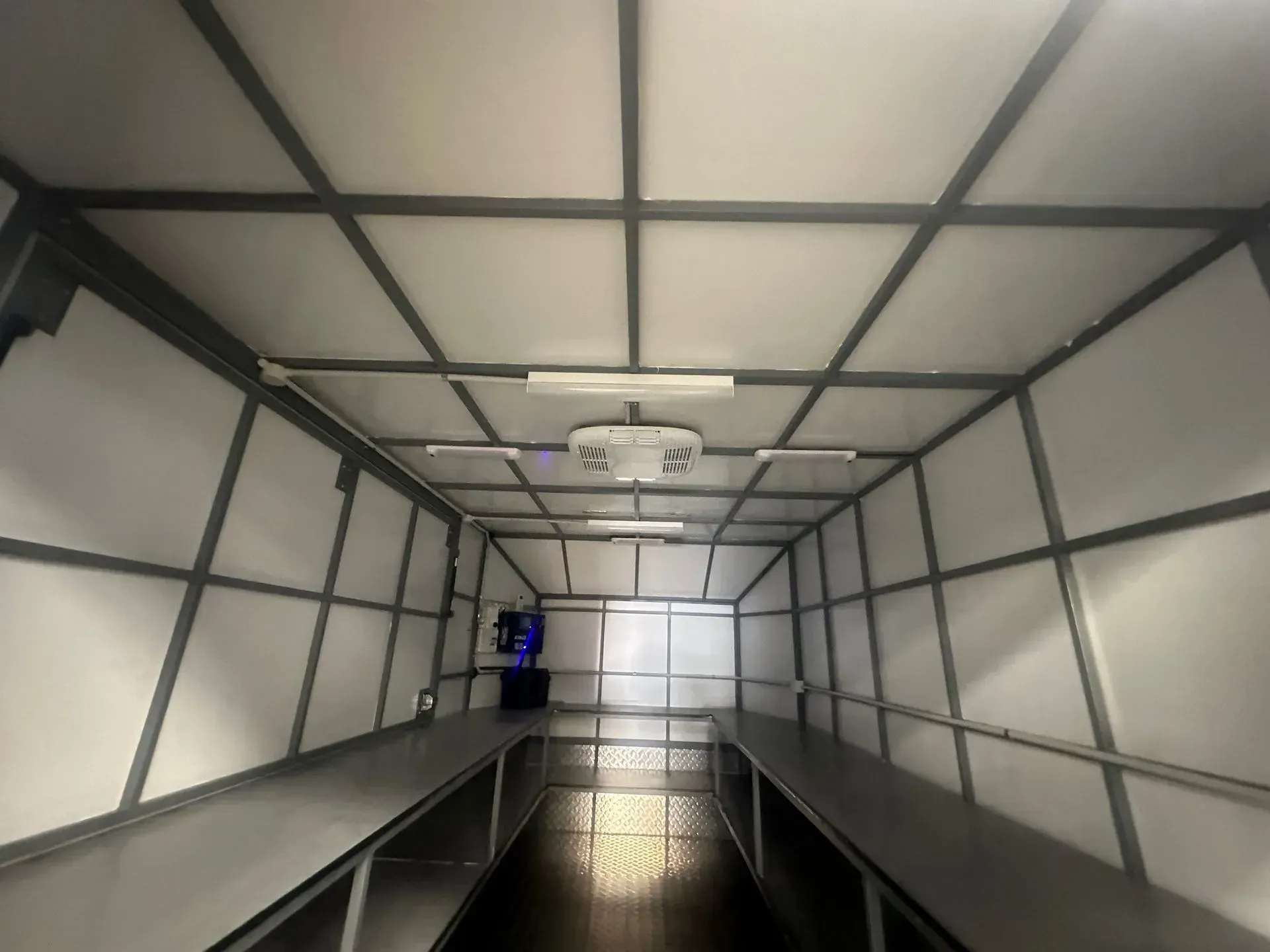

• Supply Cormorant reverse cycle air conditioner, with remote roof mounted
• Materials: all switches and power points are double pole as per Australian standards (Final 24) layout TBC), 15 amp front mounted power inlet
• Internal: 12 V LED lighting kits, deep cycle battery, 240 V charger isolation switch and roof-mounted solar panels
• Labour - Wire trailer and test installation with certificate


$39,500

(Includes GST and Registration)

(Excludes Govt. Stamp Duty)
